core.h File Reference

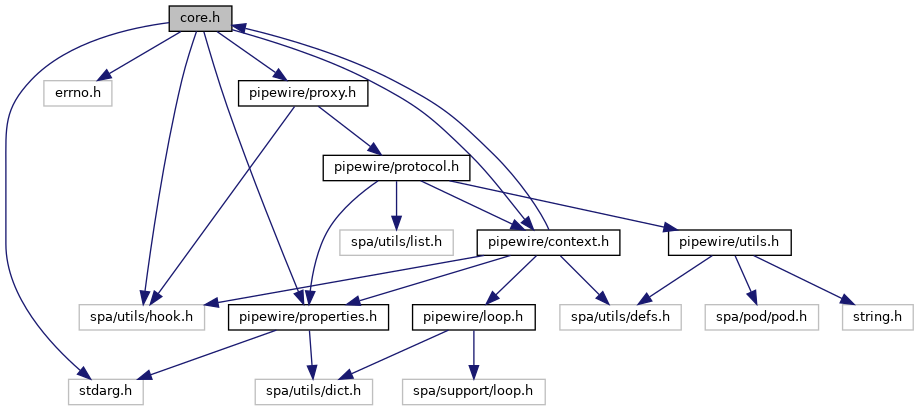

Include dependency graph for core.h:

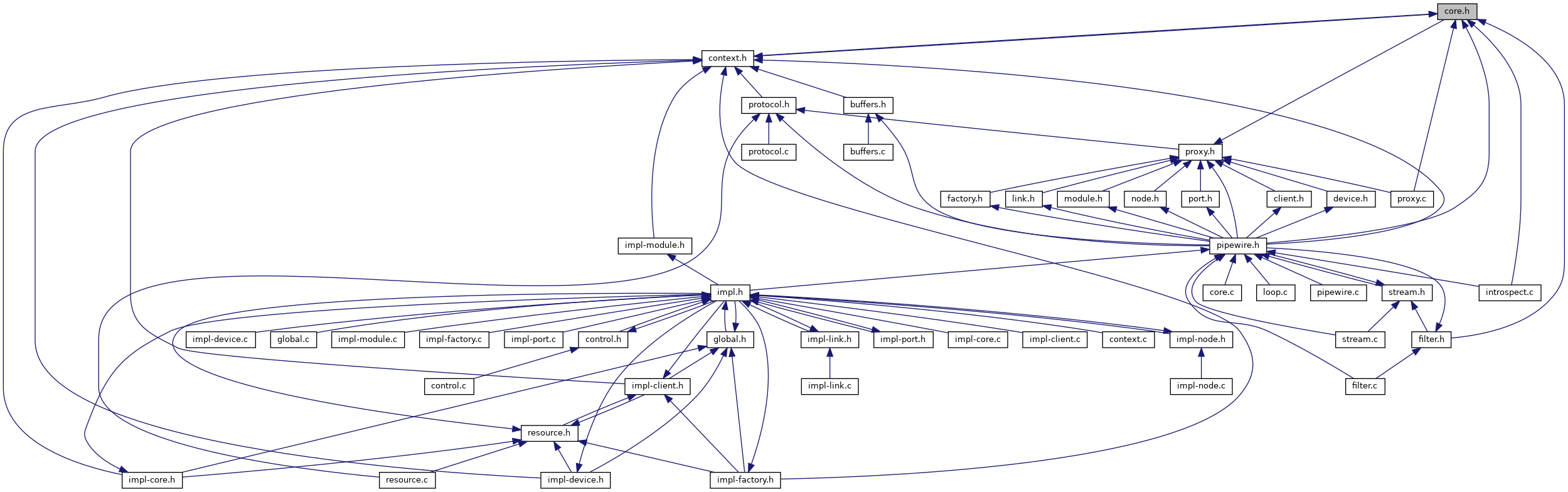

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	pw_core_info
	The core information. More...
struct	pw_core_events
	Core events. More...
struct	pw_core_methods
	Core methods. More...
struct	pw_registry_events
	Registry events. More...
struct	pw_registry_methods
	Registry methods. More...

Macros
#define	PW_TYPE_INTERFACE_Core   PW_TYPE_INFO_INTERFACE_BASE "Core"
#define	PW_TYPE_INTERFACE_Registry   PW_TYPE_INFO_INTERFACE_BASE "Registry"
#define	PW_VERSION_CORE   3
#define	PW_VERSION_REGISTRY   3
#define	PW_DEFAULT_REMOTE   "pipewire-0"
#define	PW_ID_CORE   0
#define	PW_ID_ANY   (uint32_t)(0xffffffff)
#define	PW_CORE_CHANGE_MASK_PROPS   (1 << 0)
#define	PW_CORE_CHANGE_MASK_ALL   ((1 << 1)-1)
#define	PW_CORE_EVENT_INFO   0
	Core. More...
#define	PW_CORE_EVENT_DONE   1
#define	PW_CORE_EVENT_PING   2
#define	PW_CORE_EVENT_ERROR   3
#define	PW_CORE_EVENT_REMOVE_ID   4
#define	PW_CORE_EVENT_BOUND_ID   5
#define	PW_CORE_EVENT_ADD_MEM   6
#define	PW_CORE_EVENT_REMOVE_MEM   7
#define	PW_CORE_EVENT_NUM   8
#define	PW_VERSION_CORE_EVENTS   0
#define	PW_CORE_METHOD_ADD_LISTENER   0
#define	PW_CORE_METHOD_HELLO   1
#define	PW_CORE_METHOD_SYNC   2
#define	PW_CORE_METHOD_PONG   3
#define	PW_CORE_METHOD_ERROR   4
#define	PW_CORE_METHOD_GET_REGISTRY   5
#define	PW_CORE_METHOD_CREATE_OBJECT   6
#define	PW_CORE_METHOD_DESTROY   7
#define	PW_CORE_METHOD_NUM   8
#define	PW_VERSION_CORE_METHODS   0
#define	pw_core_method(o, method, version, ...)
#define	pw_core_add_listener(c, ...)   pw_core_method(c,add_listener,0,__VA_ARGS__)
#define	pw_core_hello(c, ...)   pw_core_method(c,hello,0,__VA_ARGS__)
#define	pw_core_sync(c, ...)   pw_core_method(c,sync,0,__VA_ARGS__)
#define	pw_core_pong(c, ...)   pw_core_method(c,pong,0,__VA_ARGS__)
#define	pw_core_error(c, ...)   pw_core_method(c,error,0,__VA_ARGS__)
#define	pw_core_destroy(c, ...)   pw_core_method(c,destroy,0,__VA_ARGS__)
#define	PW_REGISTRY_EVENT_GLOBAL   0
#define	PW_REGISTRY_EVENT_GLOBAL_REMOVE   1
#define	PW_REGISTRY_EVENT_NUM   2
#define	PW_VERSION_REGISTRY_EVENTS   0
#define	PW_REGISTRY_METHOD_ADD_LISTENER   0
#define	PW_REGISTRY_METHOD_BIND   1
#define	PW_REGISTRY_METHOD_DESTROY   2
#define	PW_REGISTRY_METHOD_NUM   3
#define	PW_VERSION_REGISTRY_METHODS   0
#define	pw_registry_method(o, method, version, ...)
#define	pw_registry_add_listener(p, ...)   pw_registry_method(p,add_listener,0,__VA_ARGS__)
	Registry. More...
#define	pw_registry_destroy(p, ...)   pw_registry_method(p,destroy,0,__VA_ARGS__)

Functions
	vsnprintf (buffer, sizeof(buffer), message, args)
return	pw_core_error (core, id, seq, res, buffer)
	va_start (args, message)
	va_end (args)
int	pw_core_steal_fd (struct pw_core *core)
	Steal the fd of the core connection or < 0 on error. More...
int	pw_core_set_paused (struct pw_core *core, bool paused)
	Pause or resume the core. More...
int	pw_core_disconnect (struct pw_core *core)
	disconnect and destroy a core More...
void *	pw_core_get_user_data (struct pw_core *core)
	Get the user_data. More...
struct pw_client *	pw_core_get_client (struct pw_core *core)
	Get the client proxy of the connected core. More...
struct pw_context *	pw_core_get_context (struct pw_core *core)
	Get the context object used to created this core. More...
const struct pw_properties *	pw_core_get_properties (struct pw_core *core)
	Get properties from the core. More...
int	pw_core_update_properties (struct pw_core *core, const struct spa_dict *dict)
	Update the core properties. More...
struct pw_mempool *	pw_core_get_mempool (struct pw_core *core)
	Get the core mempool object. More...
struct pw_proxy *	pw_core_find_proxy (struct pw_core *core, uint32_t id)
	Get the proxy with the given id. More...
struct pw_proxy *	pw_core_export (struct pw_core *core, const char *type, const struct spa_dict *props, void *object, size_t user_data_size)
	Export an object into the PipeWire instance associated with core. More...

Variables
static uint32_t	id
static uint32_t int	seq
static uint32_t int int	res
static uint32_t int int const char *	message
static uint32_t int int const char va_list	args
	buffer [1023] = '\0'
static uint32_t int int const char int	r

Macro Definition Documentation

pw_core_add_listener

#define pw_core_add_listener	(		c,
			...
	)		pw_core_method(c,add_listener,0,__VA_ARGS__)

PW_CORE_CHANGE_MASK_ALL

#define PW_CORE_CHANGE_MASK_ALL   ((1 << 1)-1)

PW_CORE_CHANGE_MASK_PROPS

#define PW_CORE_CHANGE_MASK_PROPS   (1 << 0)

pw_core_destroy

#define pw_core_destroy	(		c,
			...
	)		pw_core_method(c,destroy,0,__VA_ARGS__)

pw_core_error

#define pw_core_error	(		c,
			...
	)		pw_core_method(c,error,0,__VA_ARGS__)

PW_CORE_EVENT_ADD_MEM

#define PW_CORE_EVENT_ADD_MEM   6

PW_CORE_EVENT_BOUND_ID

#define PW_CORE_EVENT_BOUND_ID   5

PW_CORE_EVENT_DONE

#define PW_CORE_EVENT_DONE   1

PW_CORE_EVENT_ERROR

#define PW_CORE_EVENT_ERROR   3

PW_CORE_EVENT_INFO

#define PW_CORE_EVENT_INFO   0

Core.

PW_CORE_EVENT_NUM

#define PW_CORE_EVENT_NUM   8

PW_CORE_EVENT_PING

#define PW_CORE_EVENT_PING   2

PW_CORE_EVENT_REMOVE_ID

#define PW_CORE_EVENT_REMOVE_ID   4

PW_CORE_EVENT_REMOVE_MEM

#define PW_CORE_EVENT_REMOVE_MEM   7

pw_core_hello

#define pw_core_hello	(		c,
			...
	)		pw_core_method(c,hello,0,__VA_ARGS__)

pw_core_method

#define pw_core_method	(		o,
			method,
			version,
			...
	)

Value:

({                                                                      \
        int _res = -ENOTSUP;                                            \
        spa_interface_call_res((struct spa_interface*)o,                \
                        struct pw_core_methods, _res,           \
                        method, version, ##__VA_ARGS__);                \
        _res;                                                           \
})

PW_CORE_METHOD_ADD_LISTENER

#define PW_CORE_METHOD_ADD_LISTENER   0

PW_CORE_METHOD_CREATE_OBJECT

#define PW_CORE_METHOD_CREATE_OBJECT   6

PW_CORE_METHOD_DESTROY

#define PW_CORE_METHOD_DESTROY   7

PW_CORE_METHOD_ERROR

#define PW_CORE_METHOD_ERROR   4

PW_CORE_METHOD_GET_REGISTRY

#define PW_CORE_METHOD_GET_REGISTRY   5

PW_CORE_METHOD_HELLO

#define PW_CORE_METHOD_HELLO   1

PW_CORE_METHOD_NUM

#define PW_CORE_METHOD_NUM   8

PW_CORE_METHOD_PONG

#define PW_CORE_METHOD_PONG   3

PW_CORE_METHOD_SYNC

#define PW_CORE_METHOD_SYNC   2

pw_core_pong

#define pw_core_pong	(		c,
			...
	)		pw_core_method(c,pong,0,__VA_ARGS__)

pw_core_sync

#define pw_core_sync	(		c,
			...
	)		pw_core_method(c,sync,0,__VA_ARGS__)

PW_DEFAULT_REMOTE

#define PW_DEFAULT_REMOTE   "pipewire-0"

PW_ID_ANY

#define PW_ID_ANY   (uint32_t)(0xffffffff)

PW_ID_CORE

#define PW_ID_CORE   0

pw_registry_add_listener

#define pw_registry_add_listener	(		p,
			...
	)		pw_registry_method(p,add_listener,0,__VA_ARGS__)

Registry.

pw_registry_destroy

#define pw_registry_destroy	(		p,
			...
	)		pw_registry_method(p,destroy,0,__VA_ARGS__)

PW_REGISTRY_EVENT_GLOBAL

#define PW_REGISTRY_EVENT_GLOBAL   0

PW_REGISTRY_EVENT_GLOBAL_REMOVE

#define PW_REGISTRY_EVENT_GLOBAL_REMOVE   1

PW_REGISTRY_EVENT_NUM

#define PW_REGISTRY_EVENT_NUM   2

pw_registry_method

#define pw_registry_method	(		o,
			method,
			version,
			...
	)

Value:

({                                                                      \
        int _res = -ENOTSUP;                                            \
        spa_interface_call_res((struct spa_interface*)o,                \
                        struct pw_registry_methods, _res,               \
                        method, version, ##__VA_ARGS__);                \
        _res;                                                           \
})

PW_REGISTRY_METHOD_ADD_LISTENER

#define PW_REGISTRY_METHOD_ADD_LISTENER   0

PW_REGISTRY_METHOD_BIND

#define PW_REGISTRY_METHOD_BIND   1

PW_REGISTRY_METHOD_DESTROY

#define PW_REGISTRY_METHOD_DESTROY   2

PW_REGISTRY_METHOD_NUM

#define PW_REGISTRY_METHOD_NUM   3

PW_TYPE_INTERFACE_Core

#define PW_TYPE_INTERFACE_Core   PW_TYPE_INFO_INTERFACE_BASE "Core"

PW_TYPE_INTERFACE_Registry

#define PW_TYPE_INTERFACE_Registry   PW_TYPE_INFO_INTERFACE_BASE "Registry"

PW_VERSION_CORE

#define PW_VERSION_CORE   3

PW_VERSION_CORE_EVENTS

#define PW_VERSION_CORE_EVENTS   0

PW_VERSION_CORE_METHODS

#define PW_VERSION_CORE_METHODS   0

PW_VERSION_REGISTRY

#define PW_VERSION_REGISTRY   3

PW_VERSION_REGISTRY_EVENTS

#define PW_VERSION_REGISTRY_EVENTS   0

PW_VERSION_REGISTRY_METHODS

#define PW_VERSION_REGISTRY_METHODS   0

Function Documentation

pw_core_disconnect()

int pw_core_disconnect

(

struct pw_core *

core

)

disconnect and destroy a core

References NAME, pw_log::pw_log_debug, pw_proxy::pw_proxy_destroy(), and pw_proxy_remove().

Referenced by pw_filter_disconnect(), and pw_stream_disconnect().

pw_core_error()

return pw_core_error	(	core	,
		id	,
		seq	,
		res	,
		buffer
	)

Referenced by pw_proxy_error().

pw_core_export()

struct pw_proxy* pw_core_export	(	struct pw_core *	core,
		const char *	type,
		const struct spa_dict *	props,
		void *	object,
		size_t	user_data_size
	)

Export an object into the PipeWire instance associated with core.

Parameters

core	the core
type	the type of object
props	extra properties
object	object to export
user_data_size	extra user data

References pw_export_type::func, NAME, pw_context_find_export_type(), pw_log::pw_log_debug, pw_log::pw_log_error, res, and pw_export_type::type.

pw_core_find_proxy()

struct pw_proxy* pw_core_find_proxy	(	struct pw_core *	core,
		uint32_t	id
	)

Get the proxy with the given id.

References pw_map::pw_map_lookup().

pw_core_get_client()

struct pw_client* pw_core_get_client

(

struct pw_core *

core

)

Get the client proxy of the connected core.

This will have the id of PW_ID_CLIENT (1)

pw_core_get_context()

struct pw_context* pw_core_get_context

(

struct pw_core *

core

)

Get the context object used to created this core.

pw_core_get_mempool()

struct pw_mempool* pw_core_get_mempool

(

struct pw_core *

core

)

Get the core mempool object.

pw_core_get_properties()

const struct pw_properties* pw_core_get_properties

(

struct pw_core *

core

)

Get properties from the core.

pw_core_get_user_data()

void* pw_core_get_user_data

(

struct pw_core *

core

)

Get the user_data.

It is of the size specified when this object was constructed

pw_core_set_paused()

int pw_core_set_paused	(	struct pw_core *	core,
		bool	paused
	)

Pause or resume the core.

When the core is paused, no new events will be dispatched until the core is resumed again.

References NAME, pw_log::pw_log_debug, and pw_protocol_client_set_paused.

pw_core_steal_fd()

int pw_core_steal_fd

(

struct pw_core *

core

)

Steal the fd of the core connection or < 0 on error.

The core will be disconnected after this call.

References NAME, pw_log::pw_log_debug, and pw_protocol_client_steal_fd.

pw_core_update_properties()

int pw_core_update_properties	(	struct pw_core *	core,
		const struct spa_dict *	dict
	)

Update the core properties.

This updates the properties of the associated client.

Returns

the number of properties that were updated

References pw_properties::dict, NAME, pw_client_update_properties, pw_log::pw_log_debug, and pw_properties::pw_properties_update().

va_end()

va_end

(

args

)

Referenced by pw_filter_set_error(), pw_properties::pw_properties_setf(), pw_proxy_errorf(), pw_resource_errorf(), pw_resource_errorf_id(), and pw_stream_set_error().

va_start()

va_start	(	args	,
		message
	)

Referenced by pw_filter_set_error(), pw_log::pw_log_log(), pw_properties::pw_properties_setf(), pw_proxy_errorf(), pw_resource_errorf(), pw_resource_errorf_id(), pw_stream_set_control(), and pw_stream_set_error().

vsnprintf()

vsnprintf	(	buffer	,
		sizeof(buffer)	,
		message	,
		args
	)

Variable Documentation

args

uint32_t int int const char va_list args

Initial value:

{
        char buffer[1024]

Referenced by pw_filter_set_error(), pw_log::pw_log_log(), pw_properties_setva(), and pw_stream_set_error().

buffer

buffer[1023] = '\0'

id

static uint32_t id

Referenced by pw_control_new(), pw_map::pw_map_insert_new(), and pw_resource_new().

message

static uint32_t int int const char * message

r

return r

Initial value:

{
        va_list args

Referenced by pw_filter_set_error(), pw_proxy_error(), pw_proxy_errorf(), and pw_stream_set_error().

res

static uint32_t int int res

Referenced by pw_buffers_negotiate(), pw_context_connect(), pw_context_connect_fd(), pw_impl_client::pw_context_create_client(), pw_context_create_core(), pw_context_create_device(), pw_context_create_factory(), pw_context_create_link(), pw_context_create_node(), pw_context_create_port(), pw_impl_module::pw_context_load_module(), pw_control_add_link(), pw_control_remove_link(), pw_core_export(), pw_data_loop_invoke(), pw_data_loop_wait(), pw_filter_add_port(), pw_filter_connect(), pw_filter_dequeue_buffer(), pw_filter_new_simple(), pw_filter_queue_buffer(), pw_filter_set_error(), pw_filter_update_params(), pw_global::pw_global_bind(), pw_global_for_each_resource(), pw_global::pw_global_new(), pw_impl_client::pw_impl_client_update_properties(), pw_impl_core_register(), pw_impl_device_for_each_param(), pw_impl_factory_create_object(), pw_impl_link_activate(), pw_impl_node_for_each_param(), pw_impl_node_for_each_port(), pw_impl_node_get_free_port_id(), pw_impl_node_set_driver(), pw_impl_node_set_implementation(), pw_impl_node::pw_impl_node_set_state(), pw_impl_port_add(), pw_impl_port_for_each_filtered_param(), pw_impl_port_for_each_link(), pw_impl_port_for_each_param(), pw_impl_port_init_mix(), pw_impl_port_release_mix(), pw_impl_port_set_param(), pw_impl_port_use_buffers(), pw_loop::pw_loop_new(), pw_main_loop::pw_main_loop_run(), pw_map::pw_map_for_each(), pw_memblock::pw_mempool_alloc(), pw_properties::pw_properties_new_string(), pw_properties::pw_properties_setf(), pw_proxy_error(), pw_proxy_errorf(), pw_proxy_init(), pw_proxy::pw_proxy_new(), pw_proxy_sync(), pw_resource_error(), pw_resource_errorf(), pw_resource_errorf_id(), pw_resource_new(), pw_resource_ping(), pw_stream_connect(), pw_stream_dequeue_buffer(), pw_stream_new_simple(), pw_stream_queue_buffer(), pw_stream_set_error(), pw_stream_update_params(), pw_stream_update_properties(), pw_work_queue::pw_work_queue_add(), pw_work_queue::pw_work_queue_complete(), and pw_work_queue::pw_work_queue_new().

seq

static uint32_t int seq

Referenced by pw_data_loop_invoke(), pw_impl_node_for_each_param(), pw_impl_port_for_each_filtered_param(), pw_impl_port_for_each_param(), pw_proxy_sync(), pw_resource_ping(), and pw_work_queue::pw_work_queue_complete().
