filter.c File Reference

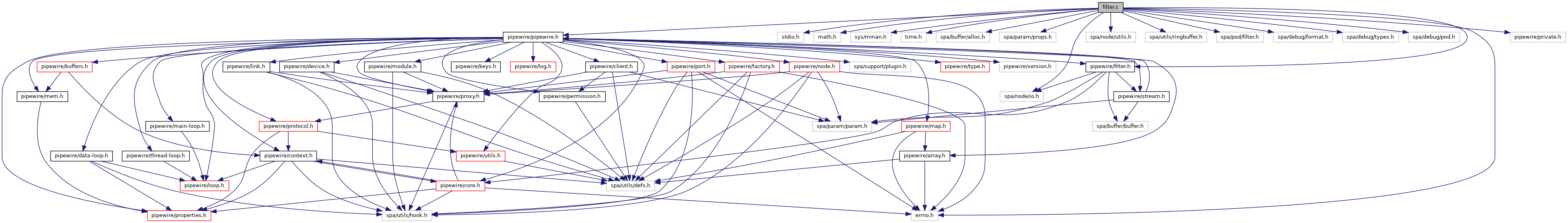

Include dependency graph for filter.c:

Data Structures
struct	buffer
struct	queue
struct	data
struct	param
struct	port
struct	filter

Macros
#define	NAME   "filter"
#define	MAX_SAMPLES   8192
#define	MAX_BUFFERS   64
#define	MASK_BUFFERS   (MAX_BUFFERS-1)
#define	MAX_PORTS   1024
#define	BUFFER_FLAG_MAPPED   (1 << 0)
#define	BUFFER_FLAG_QUEUED   (1 << 1)
#define	BUFFER_FLAG_ADDED   (1 << 2)
#define	PARAM_FLAG_LOCKED   (1 << 0)

Functions
SPA_EXPORT struct pw_filter *	pw_filter_new (struct pw_core *core, const char *name, struct pw_properties *props)
SPA_EXPORT struct pw_filter *	pw_filter_new_simple (struct pw_loop *loop, const char *name, struct pw_properties *props, const struct pw_filter_events *events, void *data)
const SPA_EXPORT char *	pw_filter_state_as_string (enum pw_filter_state state)
SPA_EXPORT void	pw_filter_destroy (struct pw_filter *filter)
SPA_EXPORT void	pw_filter_add_listener (struct pw_filter *filter, struct spa_hook *listener, const struct pw_filter_events *events, void *data)
SPA_EXPORT enum pw_filter_state	pw_filter_get_state (struct pw_filter *filter, const char **error)
SPA_EXPORT struct pw_core *	pw_filter_get_core (struct pw_filter *filter)
const SPA_EXPORT char *	pw_filter_get_name (struct pw_filter *filter)
SPA_EXPORT const struct pw_properties *	pw_filter_get_properties (struct pw_filter *filter, void *port_data)
	get properties, port_data of NULL will give global properties More...
SPA_EXPORT int	pw_filter_update_properties (struct pw_filter *filter, void *port_data, const struct spa_dict *dict)
	Update properties, use NULL port_data for global filter properties. More...
SPA_EXPORT int	pw_filter_connect (struct pw_filter *filter, enum pw_filter_flags flags, const struct spa_pod **params, uint32_t n_params)
SPA_EXPORT uint32_t	pw_filter_get_node_id (struct pw_filter *filter)
SPA_EXPORT int	pw_filter_disconnect (struct pw_filter *filter)
SPA_EXPORT void *	pw_filter_add_port (struct pw_filter *filter, enum pw_direction direction, enum pw_filter_port_flags flags, size_t port_data_size, struct pw_properties *props, const struct spa_pod **params, uint32_t n_params)
	add a port to the filter, returns user data of port_data_size. More...
SPA_EXPORT int	pw_filter_remove_port (void *port_data)
	remove a port from the filter More...
SPA_EXPORT int	pw_filter_set_error (struct pw_filter *filter, int res, const char *error,...)
SPA_EXPORT int	pw_filter_update_params (struct pw_filter *filter, void *port_data, const struct spa_pod **params, uint32_t n_params)
	Update params, use NULL port_data for global filter params. More...
SPA_EXPORT int	pw_filter_set_active (struct pw_filter *filter, bool active)
SPA_EXPORT int	pw_filter_get_time (struct pw_filter *filter, struct pw_time *time)
SPA_EXPORT struct pw_buffer *	pw_filter_dequeue_buffer (void *port_data)
	Get a buffer that can be filled for output ports or consumed for input ports. More...
SPA_EXPORT int	pw_filter_queue_buffer (void *port_data, struct pw_buffer *buffer)
	Submit a buffer for playback or recycle a buffer for capture. More...
SPA_EXPORT void *	pw_filter_get_dsp_buffer (void *port_data, uint32_t n_samples)
	Get a data pointer to the buffer data. More...
SPA_EXPORT int	pw_filter_flush (struct pw_filter *filter, bool drain)
	Flush a filter. More...

Macro Definition Documentation

BUFFER_FLAG_ADDED

#define BUFFER_FLAG_ADDED   (1 << 2)

BUFFER_FLAG_MAPPED

#define BUFFER_FLAG_MAPPED   (1 << 0)

BUFFER_FLAG_QUEUED

#define BUFFER_FLAG_QUEUED   (1 << 1)

MASK_BUFFERS

#define MASK_BUFFERS   (MAX_BUFFERS-1)

MAX_BUFFERS

#define MAX_BUFFERS   64

MAX_PORTS

#define MAX_PORTS   1024

MAX_SAMPLES

#define MAX_SAMPLES   8192

NAME

#define NAME   "filter"

PARAM_FLAG_LOCKED

#define PARAM_FLAG_LOCKED   (1 << 0)

Function Documentation

pw_filter_add_listener()

SPA_EXPORT void pw_filter_add_listener	(	struct pw_filter *	filter,
		struct spa_hook *	listener,
		const struct pw_filter_events *	events,
		void *	data
	)

pw_filter_add_port()

SPA_EXPORT void* pw_filter_add_port	(	struct pw_filter *	filter,
		enum pw_direction	direction,
		enum pw_filter_port_flags	flags,
		size_t	port_data_size,
		struct pw_properties *	props,
		const struct spa_pod **	params,
		uint32_t	n_params
	)

add a port to the filter, returns user data of port_data_size.

References port::props, pw_properties::pw_properties_new(), and res.

pw_filter_connect()

SPA_EXPORT int pw_filter_connect	(	struct pw_filter *	filter,
		enum pw_filter_flags	flags,
		const struct spa_pod **	params,
		uint32_t	n_params
	)

References filter::flags, NAME, PW_FILTER_FLAG_RT_PROCESS, pw_log::pw_log_debug, pw_properties::pw_properties_set(), and res.

pw_filter_dequeue_buffer()

SPA_EXPORT struct pw_buffer* pw_filter_dequeue_buffer

(

void *

port_data

)

Get a buffer that can be filled for output ports or consumed for input ports.

References port::filter, res, and port::user_data.

Referenced by pw_filter_get_dsp_buffer().

pw_filter_destroy()

SPA_EXPORT void pw_filter_destroy

(

struct pw_filter *

filter

)

References port::link, NAME, pw_filter::pw_filter_disconnect(), pw_filter_remove_port(), pw_log::pw_log_debug, and port::user_data.

pw_filter_disconnect()

SPA_EXPORT int pw_filter_disconnect

(

struct pw_filter *

filter

)

References NAME, pw_core_disconnect(), pw_log::pw_log_debug, and pw_proxy::pw_proxy_destroy().

pw_filter_flush()

SPA_EXPORT int pw_filter_flush	(	struct pw_filter *	filter,
		bool	drain
	)

Flush a filter.

When drain is true, the drained callback will be called when all data is played or recorded

References pw_loop_invoke.

pw_filter_get_core()

SPA_EXPORT struct pw_core* pw_filter_get_core

(

struct pw_filter *

filter

)

pw_filter_get_dsp_buffer()

SPA_EXPORT void* pw_filter_get_dsp_buffer	(	void *	port_data,
		uint32_t	n_samples
	)

Get a data pointer to the buffer data.

References pw_filter_dequeue_buffer(), and port::user_data.

pw_filter_get_name()

const SPA_EXPORT char* pw_filter_get_name

(

struct pw_filter *

filter

)

pw_filter_get_node_id()

SPA_EXPORT uint32_t pw_filter_get_node_id

(

struct pw_filter *

filter

)

pw_filter_get_properties()

SPA_EXPORT const struct pw_properties* pw_filter_get_properties	(	struct pw_filter *	filter,
		void *	port_data
	)

get properties, port_data of NULL will give global properties

References port::props, and port::user_data.

pw_filter_get_state()

SPA_EXPORT enum pw_filter_state pw_filter_get_state	(	struct pw_filter *	filter,
		const char **	error
	)

pw_filter_get_time()

SPA_EXPORT int pw_filter_get_time	(	struct pw_filter *	filter,
		struct pw_time *	time
	)

References pw_time::delay, NAME, pw_time::now, pw_log::pw_log_trace, pw_time::rate, pw_time::ticks, and filter::time.

pw_filter_new()

SPA_EXPORT struct pw_filter* pw_filter_new	(	struct pw_core *	core,
		const char *	name,
		struct pw_properties *	props
	)

pw_filter_new_simple()

SPA_EXPORT struct pw_filter* pw_filter_new_simple	(	struct pw_loop *	loop,
		const char *	name,
		struct pw_properties *	props,
		const struct pw_filter_events *	events,
		void *	data
	)

References pw_context_new(), pw_properties::pw_properties_new(), and res.

pw_filter_queue_buffer()

SPA_EXPORT int pw_filter_queue_buffer	(	void *	port_data,
		struct pw_buffer *	buffer
	)

Submit a buffer for playback or recycle a buffer for capture.

References port::filter, buffer::id, NAME, pw_log::pw_log_trace, res, and port::user_data.

pw_filter_remove_port()

SPA_EXPORT int pw_filter_remove_port

(

void *

port_data

)

remove a port from the filter

References port::direction, port::filter, port::id, port::link, and port::user_data.

Referenced by pw_filter_destroy().

pw_filter_set_active()

SPA_EXPORT int pw_filter_set_active	(	struct pw_filter *	filter,
		bool	active
	)

References NAME, and pw_log::pw_log_debug.

pw_filter_set_error()

SPA_EXPORT int pw_filter_set_error	(	struct pw_filter *	filter,
		int	res,
		const char *	error,
			...
	)

References args, pw_proxy_error(), r, res, va_end(), and va_start().

pw_filter_state_as_string()

const SPA_EXPORT char* pw_filter_state_as_string

(

enum pw_filter_state

state

)

References PW_FILTER_STATE_CONNECTING, PW_FILTER_STATE_ERROR, PW_FILTER_STATE_PAUSED, PW_FILTER_STATE_STREAMING, and PW_FILTER_STATE_UNCONNECTED.

pw_filter_update_params()

SPA_EXPORT int pw_filter_update_params	(	struct pw_filter *	filter,
		void *	port_data,
		const struct spa_pod **	params,
		uint32_t	n_params
	)

Update params, use NULL port_data for global filter params.

References NAME, port::port, pw_log::pw_log_debug, res, and port::user_data.

pw_filter_update_properties()

SPA_EXPORT int pw_filter_update_properties	(	struct pw_filter *	filter,
		void *	port_data,
		const struct spa_dict *	dict
	)

Update properties, use NULL port_data for global filter properties.

References pw_properties::dict, port::info, port::props, pw_properties::pw_properties_update(), and port::user_data.
