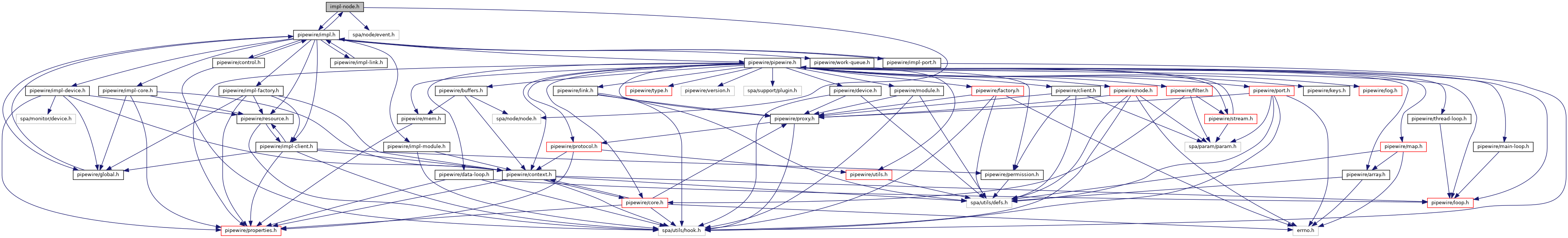

Include dependency graph for impl-node.h:

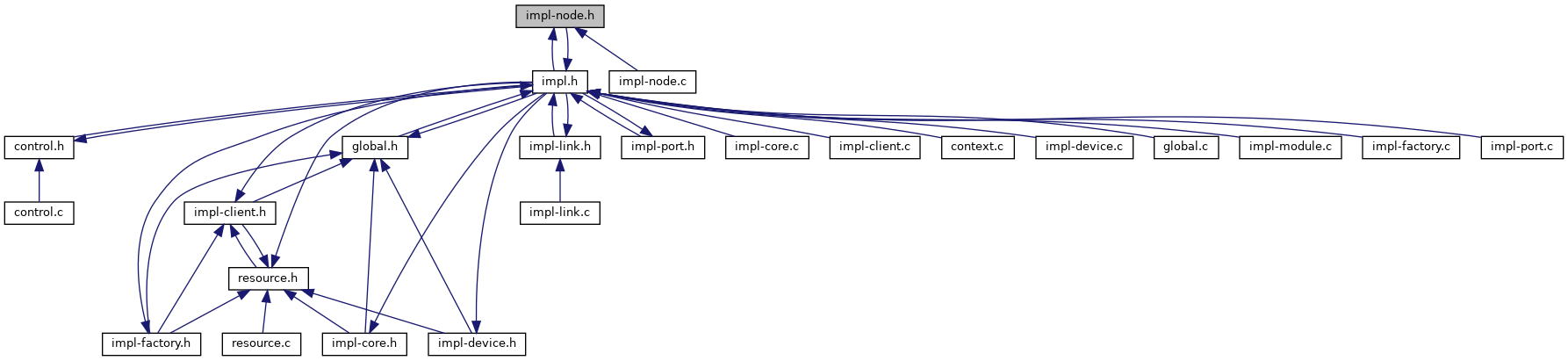

This graph shows which files directly or indirectly include this file:

Data Structures
struct	pw_impl_node_events
	Node events, listen to them with pw_impl_node_add_listener. More...

Macros
#define	PW_VERSION_IMPL_NODE_EVENTS 0

Functions
int	pw_impl_node_register (struct pw_impl_node node, struct pw_properties properties)
	Complete initialization of the node and register. More...

void	pw_impl_node_destroy (struct pw_impl_node *node)
	Destroy a node. More...

const struct pw_node_info *	pw_impl_node_get_info (struct pw_impl_node *node)
	Get the node info. More...

void *	pw_impl_node_get_user_data (struct pw_impl_node *node)
	Get node user_data. More...

struct pw_context *	pw_impl_node_get_context (struct pw_impl_node *node)
	Get the context of this node. More...

struct pw_global *	pw_impl_node_get_global (struct pw_impl_node *node)
	Get the global of this node. More...

const struct pw_properties *	pw_impl_node_get_properties (struct pw_impl_node *node)
	Get the node properties. More...

int	pw_impl_node_update_properties (struct pw_impl_node node, const struct spa_dict dict)
	Update the node properties. More...

int	pw_impl_node_set_implementation (struct pw_impl_node node, struct spa_node spa_node)
	Set the node implementation. More...

struct spa_node *	pw_impl_node_get_implementation (struct pw_impl_node *node)
	Get the node implementation. More...

void	pw_impl_node_add_listener (struct pw_impl_node node, struct spa_hook listener, const struct pw_impl_node_events events, void data)
	Add an event listener. More...

int	pw_impl_node_for_each_port (struct pw_impl_node node, enum pw_direction direction, int(callback)(void data, struct pw_impl_port port), void *data)
	Iterate the ports in the given direction. More...

int	pw_impl_node_for_each_param (struct pw_impl_node node, int seq, uint32_t param_id, uint32_t index, uint32_t max, const struct spa_pod filter, int(callback)(void data, int seq, uint32_t id, uint32_t index, uint32_t next, struct spa_pod param), void data)

struct pw_impl_port *	pw_impl_node_find_port (struct pw_impl_node *node, enum pw_direction direction, uint32_t port_id)
	Find the port with direction and port_id or NULL when not found. More...

uint32_t	pw_impl_node_get_free_port_id (struct pw_impl_node *node, enum pw_direction direction)
	Get a free unused port_id from the node. More...

int	pw_impl_node_initialized (struct pw_impl_node *node)

int	pw_impl_node_set_active (struct pw_impl_node *node, bool active)
	Set a node active. More...

bool	pw_impl_node_is_active (struct pw_impl_node *node)
	Check if a node is active. More...

Macro Definition Documentation

◆ PW_VERSION_IMPL_NODE_EVENTS

#define PW_VERSION_IMPL_NODE_EVENTS 0

Function Documentation

◆ pw_impl_node_add_listener()

void pw_impl_node_add_listener	(	struct pw_impl_node *	node,
		struct spa_hook *	listener,
		const struct pw_impl_node_events *	events,
		void *	data
	)

Add an event listener.

◆ pw_impl_node_destroy()

void pw_impl_node_destroy ( struct pw_impl_node * node )

Destroy a node.

◆ pw_impl_node_find_port()

struct pw_impl_port* pw_impl_node_find_port	(	struct pw_impl_node *	node,
		enum pw_direction	direction,
		uint32_t	port_id
	)

Find the port with direction and port_id or NULL when not found.

Passing PW_ID_ANY for port_id will return any port, preferably an unlinked one.

References NAME, pw_introspect::pw_direction_as_string(), PW_DIRECTION_INPUT, PW_ID_ANY, pw_log::pw_log_debug, and pw_map::pw_map_lookup().

◆ pw_impl_node_for_each_param()

int pw_impl_node_for_each_param	(	struct pw_impl_node *	node,
		int	seq,
		uint32_t	param_id,
		uint32_t	index,
		uint32_t	max,
		const struct spa_pod *	filter,
		int()(void data, int seq, uint32_t id, uint32_t index, uint32_t next, struct spa_pod *param)	callback,
		void *	data
	)

References result_node_params_data::callback, result_node_params_data::data, res, and seq.

◆ pw_impl_node_for_each_port()

int pw_impl_node_for_each_port	(	struct pw_impl_node *	node,
		enum pw_direction	direction,
		int()(void data, struct pw_impl_port *port)	callback,
		void *	data
	)

Iterate the ports in the given direction.

The callback should return 0 to fetch the next item, any other value stops the iteration and returns the value. When all callbacks return 0, this function returns 0 when all items are iterated.

References PW_DIRECTION_INPUT, and res.

◆ pw_impl_node_get_context()

struct pw_context* pw_impl_node_get_context ( struct pw_impl_node * node )

Get the context of this node.

◆ pw_impl_node_get_free_port_id()

uint32_t pw_impl_node_get_free_port_id	(	struct pw_impl_node *	node,
		enum pw_direction	direction
	)

Get a free unused port_id from the node.

References NAME, pw_introspect::pw_direction_as_string(), PW_DIRECTION_INPUT, pw_log::pw_log_debug, pw_log::pw_log_warn, pw_map::pw_map_insert_new(), and res.

◆ pw_impl_node_get_global()

struct pw_global* pw_impl_node_get_global ( struct pw_impl_node * node )

Get the global of this node.

◆ pw_impl_node_get_implementation()

struct spa_node* pw_impl_node_get_implementation ( struct pw_impl_node * node )

Get the node implementation.

◆ pw_impl_node_get_info()

const struct pw_node_info* pw_impl_node_get_info ( struct pw_impl_node * node )

Get the node info.

◆ pw_impl_node_get_properties()

const struct pw_properties* pw_impl_node_get_properties ( struct pw_impl_node * node )

Get the node properties.

◆ pw_impl_node_get_user_data()

void* pw_impl_node_get_user_data ( struct pw_impl_node * node )

Get node user_data.

The size of the memory was given in pw_context_create_node

◆ pw_impl_node_initialized()

int pw_impl_node_initialized ( struct pw_impl_node * node )

References NAME, and pw_log::pw_log_debug.

◆ pw_impl_node_is_active()

bool pw_impl_node_is_active ( struct pw_impl_node * node )

Check if a node is active.

◆ pw_impl_node_register()

int pw_impl_node_register	(	struct pw_impl_node *	node,
		struct pw_properties *	properties
	)

Complete initialization of the node and register.

Parameters

node	node to register
properties	extra properties

References NAME, pw_global::pw_global_new(), PW_KEY_APP_NAME, PW_KEY_CLIENT_ID, PW_KEY_DEVICE_ID, PW_KEY_FACTORY_ID, PW_KEY_MEDIA_CATEGORY, PW_KEY_MEDIA_CLASS, PW_KEY_MEDIA_ROLE, PW_KEY_MEDIA_TYPE, PW_KEY_MODULE_ID, PW_KEY_NODE_DESCRIPTION, PW_KEY_NODE_NAME, PW_KEY_NODE_NICK, PW_KEY_NODE_SESSION, PW_KEY_OBJECT_PATH, PW_KEY_PRIORITY_DRIVER, PW_KEY_PRIORITY_SESSION, pw_log::pw_log_debug, PW_TYPE_INTERFACE_Node, and PW_VERSION_NODE.

◆ pw_impl_node_set_active()

int pw_impl_node_set_active	(	struct pw_impl_node *	node,
		bool	active
	)

Set a node active.

This will start negotiation with all linked active nodes and start data transport

References NAME, and pw_log::pw_log_debug.

Referenced by pw_stream_disconnect(), and pw_stream_set_active().

◆ pw_impl_node_set_implementation()

int pw_impl_node_set_implementation	(	struct pw_impl_node *	node,
		struct spa_node *	spa_node
	)

Set the node implementation.

References NAME, pw_log::pw_log_debug, pw_log::pw_log_error, and res.

◆ pw_impl_node_update_properties()

int pw_impl_node_update_properties	(	struct pw_impl_node *	node,
		const struct spa_dict *	dict
	)

Update the node properties.

Referenced by pw_stream_update_properties().
